These finely detailed bridges will complement your pond, creek, stream or yard. Hand-built with hand selected redwood only. Galvanized hardware, pre–assembled pre-drilled and sanded. The only tools needed to assemble your bridge are a crescent wrench and a power screw driver.

• Assembly is quick and easy and can be done in as little as 60 minutes.
• Eight foot garden bridge - 8' Span x 36" W x 36" Posts
• Supports up to 750 lbs (Additional joists can be added to boost capacity if requested for an additional cost)
• The rails are about 25" above the walking surface and can be modified at time of initial construction higher or lower as needed
• Deck screws are (Deck Mate) and have a Lifetime Guarantee against Rust and corrosion for life of the bridge!
• Eight foot garden bridges are available with five rail options

The main picture will change when you change "Style of Bridge" above

• No Posts or Rails
• Single rail
• Double rails
• Rope rails
• Spindle bridge

100% Redwood Bridge Construction Specifications

• Thickness of Redwood Planks: 2" x 6" x Width of bridge
• Thickness of Redwood Headers: 2" x 10" x Length of bridge
• Thickness of Spindles: 1.5" x 1.5" x Desired height
• Thickness of Finals: 4" Balls
• Hardware: Counter-Sunk Deck Screws (Galvinized or Stainless)
• Grade of Redwood: Sapwood or Heartwood
• Guarantee: 100%

Note:  Once your order is received, your redwood garden bridge will be hand built in about a week or less. It will be assembled, and then detail sanded.  If you chose to have it sealed by us, it will be done next.  Once this is complete, it will be numbered, lined and traced for easy assembly at your home. We then disassemble and carefully pack your bridge for shipping.

*(Note: It is always prudent to inspect any packages for consequential damage in transit. Once you have accepted delivery from any carrier, you become solely responsible for the contents.)

All orders are shipped F.O.B., Clovis, CA. Shipping charges will depend on the size of the bridge and your location.  Bridges under 8 feet are shipped UPS 3-5 day ground. Over 8 foot are shipped motor freight

Installation instructions for bridge assembly

Start off with the 2 long beams (they are marked on the inside) and place them on the flat ground. Then get the planks (each one of them is numbered) and start from one end of the beams and match the number on the planks with the same number location that is on the beam, working your way to the other end. Look at the numbers and the lines that have been drawn to show you the correct location of all the parts. After you have all the planks screwed to the beams, start with the posts, which are numbered for correct locations. Also, bolt the posts on using a 9/16 wrench, looking at the trace lines for correct locations. Get the rails, looking at the correct numbers for correct locations. Screw the rails on the center post first -- you might need two people to do this, or better yet, a C clamp on one end, and then GENTLY pull down to where the trace lines are. Screw in place.  That is all it takes to assemble one of our custom built redwood bridges.  Remember, we have pre-assembled the bridge to make sure everything fits perfectly before we ship it to you and have you re-assemble it in your location.

OPTIONAL FACTORY SEALING

Because of the inherent nature of our 100% California Redwood to withstand the outdoor elements such as decay and rot, your Redwood Bridge really does not need to be finished. Many folks prefer to allow their Redwood Bridge to "age naturally" outdoors without any finish at all. Over time the color will weather to a handsome silver-gray highlighted by darker streaks, and the grain of the wood will become slightly raised.

Other folks like the rich look & luster of a clear sealer that brings out the richness of the 100% redwood.  If you go this route you may find a wood sealer to be useful by blocking the pores of the wood. This inhibits the grain from becoming raised yet allowing the natural fading to a gentle silvery-gray color  We offer an optional factory sealing of 2 coats of Thompson's Water Seal which is a waterproofer plus a clear wood protector.

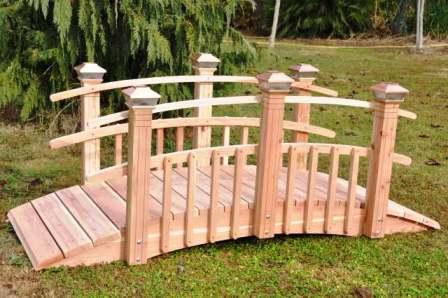

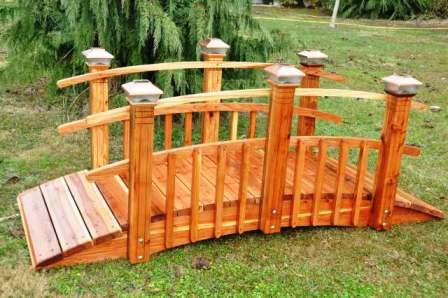

The cost is $14.00 per ft length for our standard bridges and pro-rated for larger custom width bridges.  (See photo's below).  On the left is how your bridge will look when you receive it unsealed.  On the right, is the same bridge sealed.  Both bridges are shown with the optional Solar Post Caps (available below in "Related Items")
