4" x 3" DECK & DOCK LIGHTS

• Actual size = 4¾" x 3 ¾" x 2" thick
• The Deck and Dock Lights are an exciting breakthrough in exterior illumination. They will give your wooden or Trex deck and dock areas the necessary directional lighting, as well as an attractive, sophisticated appearance.
• These lights not only enhance the look of your property, but also provide you with additional security and when used in appropriate areas, they can enhance the safety of your loved ones and guests.
• The 3" x 4" Deck and Dock Light is designed for easy installation into wood or trex decking. A small notch is cut out of adjoining deck boards, and then the light is inserted and locked in place with hold-tight tabs.
• The wide lip supports the light and its smooth, rounded corners make the Deck and Dock Light a safe, yet elegant addition to your outdoor living area.
• Can be used on all types of decking and different thickness of material
• These lights can also be used inside if installed in a non-load bearing application. (Don't put a chair leg on the lens and then stand on the chair)
• Add-on lights are also available on our TJB-INC Store (additional cable may be necessary depending on number and spacing of lights).
• Tools Required: Jig Saw, Pliers, Utility Knife, & Regular Screwdriver.
• The Deck and Dock Lights can be used in wet areas like docks, porches, wood stairs, & decks as well as dry applications.
• Use them to highlight borders and add safety to a dark area.

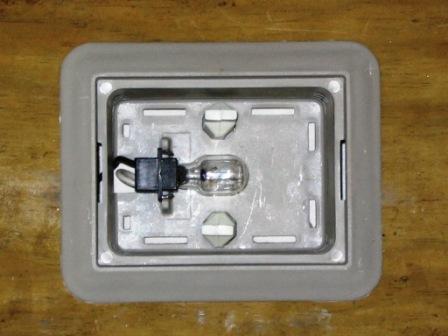

• The clear bulbs can be easily changed out and replaced with colored bulbs like red, yellow, or green (all available separately) for special or seasonal effects. (Bulbs available at Home Depot or Lowes)
• The fixtures come with a 2 year manufacturer warranty.
• Easy DIY Installation Instructions are included with each order. Replacement parts are always available & in-stock (if ever needed)
• TJB-INC supplies free technical help by calling 203-288-3711 or E-Mail : tjb@TJB-INC.com

Deck/Dock Lights are available in several different packaging options

1. Individual: (1) Light, (1) Lens, (1) Socket, (1) 4-watt bulb, (2) connectors.
2. 4-Pack Add-On: (4) Lights, (4) Lenses, (4) Socket, (4) 4-watt bulbs, (8) connectors
3. Box of 20: (20) Light, (20) Lenses, (20) Socket, (20) 4-watt bulbs, (40) connectors.
4. 8-Pack Installation Kit includes: (8) DECK LIGHT fixtures & lenses, (8)sockets, (8) 4-watt bulbs, (16) wire connectors, 50 feet of 16/2 outdoor cable, 12-volt dust-to-dawn 100-Watt transformer (can power up to 25 - 4-watt fixtures), and instructions.
5. 14-Pack Installation Kit includes: (14) DECK LIGHT fixtures & lenses, (14)sockets, (14) 4-watt bulbs, (28) wire connectors, 100 feet of 16/2 outdoor cable, 12-volt dust-to-dawn 100-Watt transformer (can power up to 25 - 4-watt fixtures), and instructions.

EASY INSTALLATION - "Click Here" for .pdf instructions

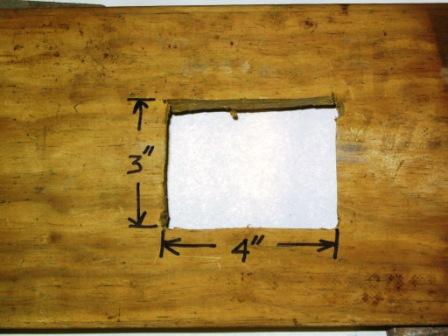

• Cut a 3" x 4" hole in your decking
• Put Deck/Dock light in hole
• Push Hold Down Tabs into bottom of fixture so they are tight against the decking
• Connect wires & you are done!

TJB-INC INSTALLATION TIP

     At trick that we use at TJB-INC, is to place a white napkin on top of the area where you think a light should go.  (You may need to use tape or a rock to keep the napkin from blowing away.)   Then stand back and see how it looks.  It is much easier to move napkins that it is to move light fixtures.  Adjust as you feel necessary until you find a lay-out that you like.  Then you will know how many lights you will need to order and install to complete your project.

1. When installing these lights in wet or saltwater installations, use a "Di-Electric Silicone" (available at local autoparts or marine supply stores) or Vaseline on all electrical connections.  IE:  Remove the bulb from the socket, apply the Di-Electric Silicone on the base and re-install the light bulb into the socket.  This will prevent the minerals and salts from coroding the electrical connections.  You can also use this method on all of your wire connection to assist in the prevention of corosion over the years.

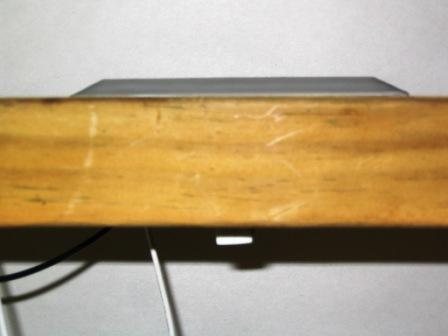

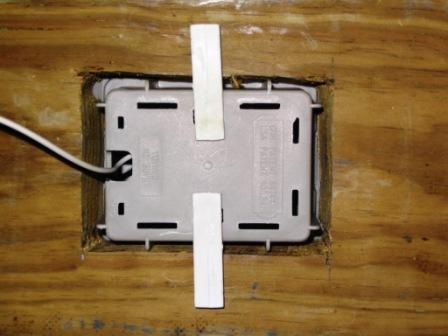

2. Use the "L" shaped (included) hold down tabs to secure the fixtures to your surface.   Turn the fixture over, then push the hold down tabs into the bottom of the light so there is a tab to the left and right of the fixture which will extend under the adjacent deck boards. (see photos above)  This will make it so your lamp fixture will not raise above the height of your decking so there will be no tripping hazard, frost heaving, and a great deterant to theft.
3. If your decking material is thinner than the light fixture, you can use a scrap piece of lumber to put between the clip and the bottom of the decking to fill the extra space.  This will allow the light fixture to be snugged up tight to the decking when you use the hold down tabs.  You could also apply adhesive to the edges of the cut hole in the decking and glue the fixture down.  Any bulb change would be from the top under the lens and would not be affected by the glue.

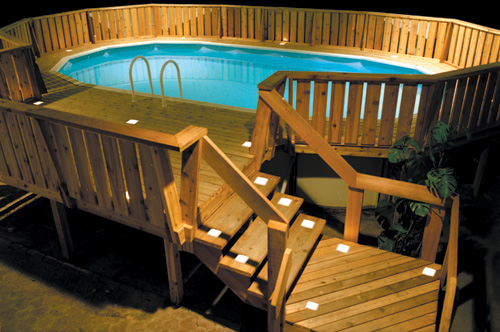

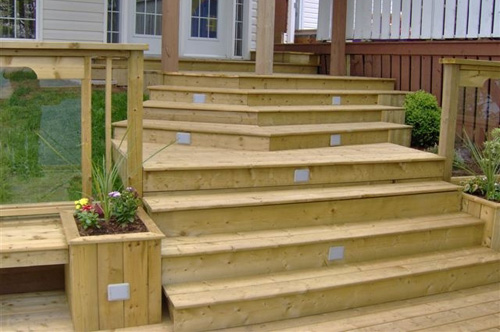

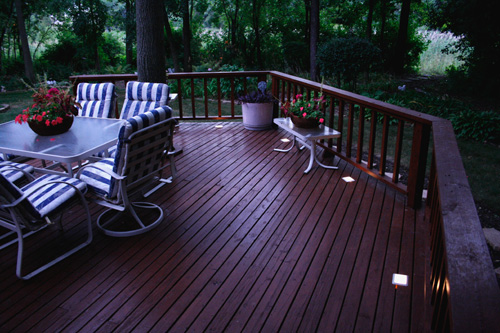

 Installed Photos
