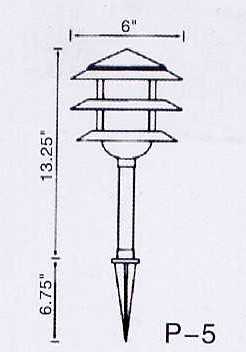

P-5 - Pathway Lighting

Primarily for pathways and small garden areas, these fixtures enhance any landscape  ... night or day with their architectural styling and long-lasting durability.  These popular fistures can be used in conjunction with Frog Lights complimentary wall fistures for a consistant landscaping theme.

• HOUSING = Die Cast Aluminum, assembled with 3 steel screws
• FINISH = UV Powder Coating in: Black
• LENS = Frosted tempered glass or Clear Glass
• LAMP TYPE = 12 Volt, Bi-Pin JC Halgen (50 watt max)
• WIRING = All Fixtures are pre-wired with 15' pigtail of 18/2 direct burial low-voltage cable
• Sturdy 6" Aluminum Ground Mounting Spike
• Overall Well Constructed Lighting Fixture!

TJB-INC Installation Tips:

As you design a landscape, be aware of the following basic lighting design principles.

1.  Avoid overlighting which can produce glare and limit visibility.

2.  Use primarily one type of light source (Halgen, LED, Sodium) as they have different subtle color differences and can clash if not used correctly.

3.  Use light to show what's important in a landscape like objects, architectural details and traffic patterns.

4.  Conceal the source of the light to enhance the effect rather than the fixture itself.

5.  Use a combination of various lighting techniques to create a more interesting setting.  These include: Moonlighting, Silhouetting, Shadowing, Spotlighting, & Security Lighting.

6.  Decide how many lighting fixtures you will need to propertly illuminate the area or object before you start your installation.

7.  Decide what type of lighting system would be the best for your particular application.  Whether that be 120 Volt/Line Voltage System or a 12 Volt Low-Voltage System.

8.  Decide which mounting arrangement and fixtures you will need.  The power distribution system (transformer) you choose, where you place the fixtures and the effect you wish to create will all determine the appropriate mounting and fixtures you will need.
