AquaSurgePRO 4000 Adjustable Flow Water Garden Submersible Pump

The heart of the ecosystem. The pump circulates the water from the skimmer putting it through the filter mats and sending it over to the bottom of BIOFALLS where it passes up through another set of filter mats and media. Water Garden Pumps are exclusively designed for use in a water garden skimmer.

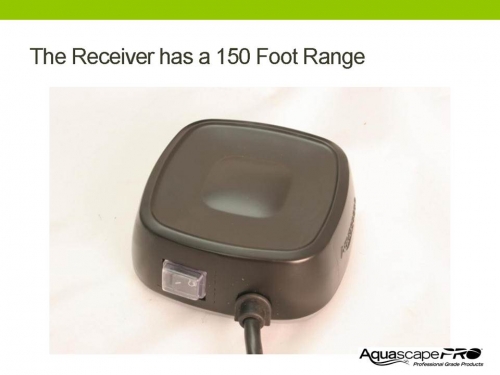

• Flow adjusts from 4,000 gph to 8,000 gph with a click of a button on the remote control unit from up to 150' away.
• Allows you to customize and fine tune the flow of waterfalls and streams.
• Pump can be turned on or off with the remote control.
• Ideal for use in Pondless Waterfall applications, allowing the falls to be adjusted or turned on and off when desired.
• Ability to adjust the flow makes it easy to select the right pump for any application
• Each remote and receiver are paired together with a unique frequency
• Comes with all the following adapters:  1.5" rotational ball outlet, 1.50"-2" Milti-Hose Adapter, 1", 1.25", 1.5" Multi-Hose Adapter and 1.5" Female Adapter (see photo below)
• These pumps are ideal for waterfalls and water features that do not require the water to be pumped up to a very high elevation.  Best efficienty for the 2000-4000 gph pump is between 5' to 12' of head and for the 4000-8000 gph pump is 7' - 15' of head.
• The asynchronous motor design ensures that the impeller spins in only one direction; maximizing performance, reliability and minimizing electrical consumption.
• 3-YEAR FULL REPLACEMENT WARRANTY! (Customer only pays shipping)
• Built-in carrying handles add convenience.
• Pumps can be used vertically or horizontally.
• Fish Safe - Uses no oil!
• Recommended for use in a skimmer prefilter or MicroSnorkel Pondless.
• All pumps in ADIs' product line are specifically designed to support the demanding requirement for 24 hour/7days a week operating condition of a water garden.
• Continuous operation heightens the importance of proper pump selection to minimize power consumption yet deliver enough flow to produce the natural sights and sounds of a beautiful water feature.
• AquaSurge PRO Pumps can be used as a non-submersible, in-line pump with the proper fittings.  Care must be taken to prevent solids in the water from damaging the impeller.
• Also available in smaller size 2,000 - 4,000 gph model.
• FREE STANDARD SHIPPING ON THESE PUMPS!
• Special Mail-In Rebate offer of $50.00 if you purchase this pump between 03/15/14 to 05/31/14

* NOTE *: If you are using the AquaSurge PRO Pump to replace an exsisting AquascapePro Pump (1500, 3000, or 4500 gph) and you have an Aquascape 2" Dual-Union Check Valve, you will need one of two special adapters.

1. For a Classic Series Skimmer (rectangler in shape), you will need the "Classic Series Adapter" (SCU#99144) & a small 4 oz container of "Christy's Red Hot Glue".  To view our installation video, "CLICK HERE"
2. For a Signature Series Skimmer (flat front with rounded sides and back), you will need the "Signature Series Adapter" (SCU#29475) No glue is required for this adapter.  To view our installation video, "CLICK HERE"

SELECTING A PUMP:

 Choosing a pump for a water garden should be based on a few job requirements. Desired flow, pumping height and electrical costs are all factors that need to be considered. The higher the pump needs to push water, the less flow you are going to get out of that pump. Pond Kits come with pumps sized to turn a pond over at least once per hour. Make sure your pump application follows the same guideline. If your applications' pumping height is close to maximum pump shut off height, substitute the next larger pump available.

To view a side by side comparison of the pumps we offer, "Click Here"

• The AquaSurge 2000 is the new replacement for the AquascapePro 1500 which has been discontinued as of 1/1/2009

To view the written 12 page AquaSurge Pump Instruction Manual (English & French) in a Down-loadable PDF file that can be printed, click on the link at the end of this statement. "DOWNLOAD MANUAL"

For a copy of the PUMP TROUBLESHOOTING/WARRANTY GUIDELINES, "CLICK HERE".

---



NOTE:  If you need this pump quickly, do not choose "Parcel Post" as your shipping option at check out.  We have found that Parcel Post can take 3-4 days longer than what is listed as shipping times.  Priority Mail will take 2-3 days to go from the East Coast to the West Coast.  Additionally, Priority Mail can be tracked much better than Parcel Post.

 Proper plumbing is very important!!!

Your pump can only work as well as your plumbing system allows it to. A larger pump does not always mean more water.  A larger pump and larger pipe does mean more water. You can only fit a certain amount of water through a certain size hose.

1"hose= 1,500gph                2" hose= 5,400gph
1-1/4" hose= 2,700gph          3" hose= 13,500gph
1-1/2" hose= 3,600gph          4" hose= 21,000gph

For example: If you have a pump that is rated for 7,200gph and you are using a 2" flex hose. You are only going to get about 5,400gph coming out at the end of the pipe. Yes, head height, elbows, etc. have a factor in it also but I am trying to keep it simple and make a point.  If you need more GPH, try using 2 hoses or upsize to a larger diameter hose.
