Kerr Lighting 12 v Commercial Paver Light 4" x 8" for Walk, Patio, Driveway,& Pool Deck Installation

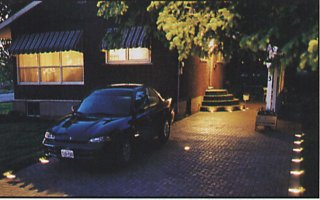

This 4" x 8" Commercial Paver Light is a safe and efficient 12 volt lighting system that will guide you and your guests into your driveway, through pathways walkways around pools and patios. Sold Individually or in Kits!
SKU: |
KLCPL1 |
Shipping Weight:
|
1 lb. |
|
|
Commercial Paver Light - 4" x 8"
- Actual size = 3 15/16" Wide x 7 7/8" High x 2 3/8" Deep
- Light come with a 7-watt standard bulb
- This Paver Light is a safe and efficient 12 volt lighting system that will guide you and your guests into your driveway, through pathways walkways around pools and patios.... anywhere interlocking pavers are used.
- Thanks to newly developed technology, The Paver Light is now available for installation into pre existing, and new asphalt and concrete driveways.
- Paver Lights are a completely safe system which can be applied to residential or commercial applications and create a dynamic aspect to your landscape.
- The Paver Light is made of the highest quality durable plastics, which can be driven on by cars and trucks. The top lens is made of a durable shatter-proof plastic that is 3/8" thick (measured at outer edge). So durable, we offer a two year manufacturer's warranty on the brick itself.
- The 12 volt system is safe and economical to operate and does not require a licensed electrician for installation. The bulbs, while easy for adults to change, are not accessible to children.
- The warm color appearance of the incandescent lamp included with each fixture is appealing since it’s similar to candlelight or the illumination of a kerosene lamp.
- The brick comes with a 7 watt wedge base bulb that has an average life expectancy of 2,000 hours.
- Great for any 4" x 8" Paver or Brick Installation
- Use in Walkways, Patios, Driveways & Pool Decks
- Kerr Lights can be set into asphalt & poured concrete with some special preparations. (See information below or call TJB-INC for details @203-287-0636)
- Our Paver Lights come in several different configurations for commercial interlock applications as well as asphalt and stamped concrete.
- These lights are designed with extra ribbing, thicker and stronger lenses to withstand the day-to-day higher traffic in commercial applications.
- Each light comes with hold-tight tabs to secure the fixture to adjacent paver bricks. (see photo below)
- These lights are very suitable for residential applications as well.
- The lights are sold individually, in bulk contractor packaging, and complete do-it-yourself kits complete with lights, connectors, low voltage wire, & proper low voltage 12 volt transformer.
- Kerr Lights are safe and economical.
- One of the strongest & most durable ground & surface installed lighting fixtures available today. (Yes! you can drive over & park on them!)
- They also come with a 2-year manufacturer warrantee.
- PaverLight Fixtures are 2 3/8" 60 mil) thick to match with most interlocking pavers made in the USA & Canada.
- Easy DIY Installation Instructions are included with each order.
- 2-Watt LED Bulbs with 5-year warranty now available for these lights (If LED option is selected above, fixtures will come with both incandescent & LED to be installed by end user)
- Replacement parts are always available & in-stock (if ever needed)
- TJB-INC supplies free technical help by calling 203-287-0636 or E-Mail : info@TJB-INC.com.
To calculate shipping costs: Add a product to the shopping cart. An orange colored "Calculate Shipping" tab will now show up on the right side of your screen in the blue area in the shopping cart section. Click on this "Calculate Shipping" and enter your zip code. Hit "Submit", and your shipping options & delivery times will now be displayed. If there is a choice, pick the option that best fits your needs. Canadian customers responsible for duties & import taxes.

To View Installation Instructions "CLICK HERE".
A trick that we use at TJB-INC, is to place a white napkin on top of the pavers where you think a light should go. (You may need to use tape or a rock to keep the napkin from blowing away.) Then stand back and see how it looks. It is much easier to move napkins that it is to move light fixtures. Adjust as you feel necessary until you find a lay-out that you like. Then you will know how many lights you will need to order and install to complete your project.
TJB-INC INSTALLATION TIPS
- When installing these lights in wet or saltwater installations, use a "Di-Electric Silicone" (available at local autopart or marine supply stores) or Vaseline on all electrical connections. IE: Remove the bulb from the socket, apply the Di-Electric Silicone on the base and re-install the light bulb into the socket. This will prevent the minerals and salts from coroding the electrical connections. You can also use this method on all of your wire connection to assist in the prevention of corosion over the years.
- Use the "L" shaped (included) hold down tabs to secure the fixtures to the ground. You simply lift the adjacent pavers on the left & right of the lamp fixture. Turn the fixture over, then push the hold down tabs into the bottom of the light so there is a tab to the left and right of the fixture which will extend under the adjacent pavers. (see photo below) This will make it so your lamp fixture will not raise above the height of your pavers so there will be no tripping hazard, frost heaving, and a great deterant to theft.

Installation In Concrete/Stamped Concrete
Any of our 5 sided base lights, 4" x 8" (Residential & Commercial), 4.5" x 7" CASINO, & our 4.5" x 9" BC lights, can be installed into concrete. I will try to explain some of the techniques that we have used for our installation of these paver lights into concrete surfaces.
- Always pre-wire and test your lights before you set them in concrete. I like to run my wires in conduit so if there is ever a problem with the wires, I can go back and pull new wire or repair the problem. If you are running conduit, you will have to make sure it is installed below the concrete so that any relief cuts that are made do not cut through the conduit and cut your wire. I like to run my conduit to the outside edge of the concrete. This eliminates most of the wire breakage problems acssociated with saw cutting of the concrete in colder climates. You can drill a hole in the side of the light fixture's base and connect the conduit directly to the light. I like using flexible conduit so that I can raise or lower the fixture during the installation process. Whith rigid pipe, you have to be exact with your height placement and there is no room for error.
- The light fixtures come with special hold-down tabs (see photo above). I install these into the bottom of the lights so that when the base is set into the mortar, the tabs become imbedded into the concrete preventing the light fixture from rising up or down.
- After the wiring and tabs are installed, then wrap the light fixture in plastic wrap (IE: Saran Wrap, Clear Wrap, Stretch-Tight, etc.). This prevents the concrete from getting inside of the fixture and from staining it. After the concrete has dried, you can cut away most of the exposed plastic wrap. Any remaining plastic wrap can be quickly melted away with any hand-held heat source (IE: Plumber's Torch, Heat Gun, Hair Drier, etc.).
- Well, there are my 3 basic tips that have worked well for our installation crew. If you are doing stamped concrete, a little extra care is needed when pressing down the form molds so as not to press the light fixture too deep into the concrete. A ¼" recess of the fixture is ok if you can still remove the lens with a screwdrive for maintenance in the future
Instructions on how to use saddle connectors that are included with each light
Average Rating: (From 5 Reviews):
Read Complete Reviews
|
Submit a Review
Paver Light
From William yarbrough of Paradise valley, Arizona on .
Highly Recommended
From diane kirkpatrick of Whittier, California on .
Lightastic
From Ed of Pittsburgh, Pennsylvania on .
Plow-Proof Lights
From Bill H. of Cheshire, Connecticut on .
Highly Recommended!
From Juan L of Medley, Florida on .
Read Complete Reviews |
Submit a Review
Option | SKU | Price | Weight |
Number & Style of Commercial 4" x 8" Lights =: Individual Light | KLCPL1 | $26.99 | 1 |
Number & Style of Commercial 4" x 8" Lights =: Individual Light w/LED Bulb | KLCPL1-LED | $45.55 | 1 |
Number & Style of Commercial 4" x 8" Lights =: Box of 10 - Individual Lights | KLCPL10 | $269.99 | 15 |
Number & Style of Commercial 4" x 8" Lights =: Box of 10 - Individual Lights w/LED | KLCPL10-LED | $406.98 | 15 |
Number & Style of Commercial 4" x 8" Lights =: Box of 20 - Individual Lights | KLCPL20 | $500.00 | 30 |
Number & Style of Commercial 4" x 8" Lights =: Box of 20 -Individual Lights -LED | KLCPL20-LED | $799.99 | 30 |
|
|
|
